How to Check Smart Radiator Valve Compatibility Before Buying or Installing

A smart radiator valve normally belongs on a wet central-heating system: a boiler, heat pump, or district-heating supply sends hot water through pipes to individual radiators. The radiator should already have a thermostatic radiator valve body, even if its current head is manual.

Look for water-filled pipes entering the radiator and a central heat source. This is the standard setup for smart climate-control systems, where each valve can reduce or increase heat demand in its own room.

Do not assume every heater with a “radiator” shape qualifies:

• Steam radiators have steam vents or distinctive single-pipe/two-pipe steam fittings. They need steam-rated controls; ordinary smart TRVs can cause poor heating or leaks.
• Electric radiators need an electric-compatible thermostat or integrated controller, not a valve head.
• Underfloor or radiant heating is controlled at a manifold, actuator, or wall thermostat rather than at a radiator valve.

A smart valve regulates one radiator’s flow. It does not automatically switch the boiler on, set water temperature, or replace a central programmer. For reliable whole-home operation, the valve system may need a compatible boiler relay, thermostat, or hub.

A smart radiator valve replaces the thermostatic head, not the brass valve body that connects to the pipe. Start with the heating off and the radiator cool enough to handle.

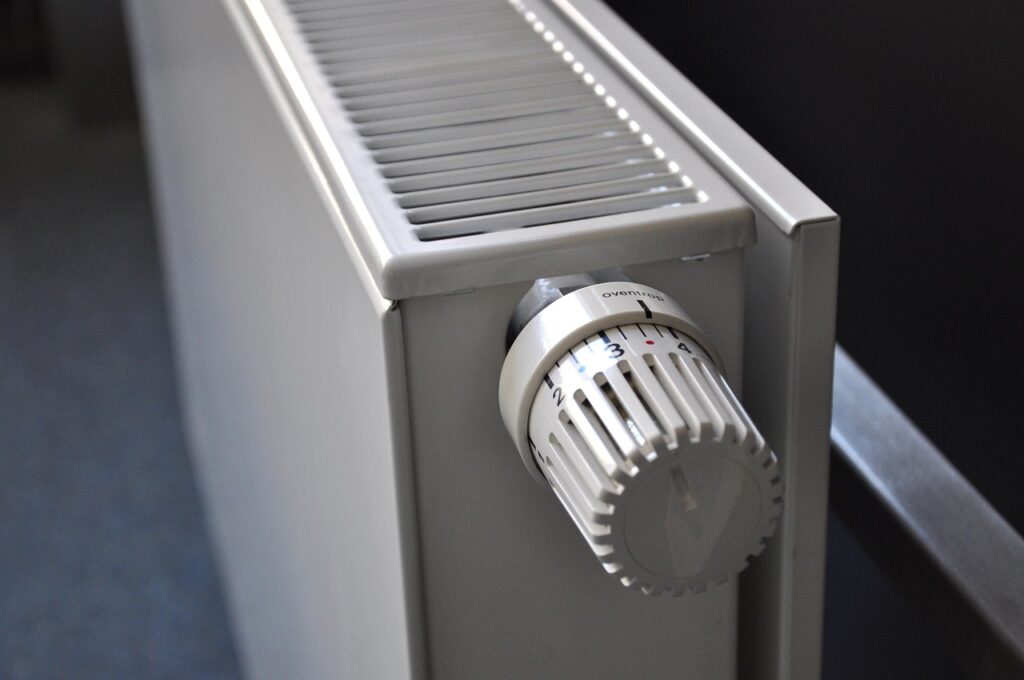

A removable TRV head usually has a numbered temperature dial and a distinct retaining collar, clamp, or release clip where the head meets the valve. Once its designed retainer is released, the head comes away and exposes a small spring-loaded metal pin in the centre of the valve body.

A plain manual valve is different: its knob directly turns the valve mechanism, commonly through several full turns. It may have no separate head-to-body joint or exposed spring pin. A smart TRV cannot normally be fitted to it without replacing the valve body, which is plumbing work requiring the heating circuit to be isolated and drained.

Some compact or decorative valves have an integrated head and body. If there is no obvious collar, clip, or manufacturer-described head-removal method, treat it as non-removable until confirmed. Never loosen a hexagonal nut on the pipework or valve body to test this; that can release heating water.

Remove only the head using its intended collar or clip. Photograph the valve straight on, from the side, and alongside the removed head; include any stamped logo, model code, or adapter already present. Brand alone is not enough—one manufacturer may use several fittings.

Record these details before opening a compatibility chart:

• Connection type: threaded collar, clamp-on fitting, or snap-fit mount.
• Thread outside diameter and pitch: measure with calipers where possible. The common M30 × 1.5 thread is not universal.
• Valve-pin condition: press gently with a fingertip or blunt tool; it should move a few millimetres and spring back freely. Do not pull or twist it.
• Clearance: note nearby skirting, curtains, furniture, and the valve’s angle. A compatible adapter is of little use if the smart head cannot fit or be removed.

Compare the photographs and measurements with the smart-valve maker’s chart, then confirm whether the required adapter is included or sold separately. For example, clamp-style Danfoss RA fittings need a different adapter from a standard M30 threaded valve, even when both heads appear similar at a glance.

With the old thermostatic head removed, press the exposed valve pin straight inward using a fingertip or a non-marring tool. It should move a few millimetres against spring pressure and return promptly to the same extended position. A pin that sticks, remains depressed, or needs excessive force can leave the radiator permanently hot or cold; fitting a motorised head will not cure the valve body.

Check this while the heating is cool, then inspect the installed position—not just the bare valve. Smart heads are usually larger and longer than manual TRVs. Leave room for the battery cover, display, and any rotating adjustment ring, plus enough hand access to remove the head for battery changes. Watch for curtain hems, radiator cabinets, pipe boxing, window boards, and furniture directly in front of the valve.

A head trapped in a hot pocket behind a curtain reads local air rather than room temperature and will shut down too early. Where the valve is vertical, recessed, or obstructed, an approved angled adapter or a remote temperature sensor may be the better answer. A radiator valve is also not a control solution for radiant heating, which needs controls designed for its slower, manifold-based operation.

Each smart valve closes or throttles one radiator. Install several, and the boiler or heat pump may see much lower flow whenever rooms reach setpoint. One bypass route or permanently open emitter is often needed, but the correct arrangement depends on the appliance, pump, and existing controls.

Do not assume that every radiator should receive a smart head. Keep any radiator required for the system’s minimum circulation open or under a compatible bypass strategy. Bathrooms are commonly treated this way, though the installer’s design—not a rule of thumb—should decide it.

Seek heating-engineer advice before a whole-home rollout, especially with a heat pump. Heat pumps generally run best with steady circulation and lower water temperatures; aggressive on/off zoning can reduce efficiency, trigger flow faults, or create short cycling. Professional checks are also warranted if radiators already heat unevenly, the pump is noisy, the boiler overheats, or there is a history of low-flow error codes.

A smart radiator valve must join the system that will control it. Check whether it uses a proprietary hub, Zigbee, Thread/Matter, Bluetooth, or a vendor bridge; a valve cannot usually be paired directly with an unrelated smart-home hub. Confirm app support, voice-platform integration, account requirements, and whether batteries are replaceable and readily available.

For boiler control, a valve may need a compatible relay, thermostat, or hub that can issue a heat call when any room needs warmth. Without it, the valve can close and open locally but cannot start the boiler; conversely, a boiler thermostat in a warm hallway may stop heat before a colder room reaches target.

Place temperature sensing deliberately

The valve’s built-in sensor is often distorted by radiator heat, curtains, furniture, or stagnant air. In an enclosed cabinet or behind a sofa, use the manufacturer’s external room sensor where available. Position it at typical occupied height, away from direct sun, drafts, and the radiator.
